Observability

SurrealDB can be monitored by enabling built-in observability.

Enable observability

To enable observability, the SURREAL_TELEMETRY_PROVIDER environment variable has to be set to otlp. If set to anything else, no observability will be available.

If enabled, SurrealDB will send metrics and/or traces to an OpenTelemetry Collector. Configuration of the collector is done via environment variables. The most important one is OTEL_EXPORTER_OTLP_ENDPOINT. By default this is set to localhost. It should be set to the GRPC endpoint of your OTEL collector. For example if your OTEL collector named my-collector is running in Kubernetes in the monitoring namespace the following can be used:

OTEL_EXPORTER_OTLP_ENDPOINT="http://my-collector.monitoring.svc.cluster.local:4317"

Metrics can be disabled (even if SURREAL_TELEMETRY_PROVIDER is set to otlp) by setting the SURREAL_TELEMETRY_DISABLE_METRICS environment variable to true. Similarly traces can be disabled by setting SURREAL_TELEMETRY_DISABLE_TRACING to true.

Metrics

Metrics are gathered every minute and sent to the collector. The following metrics are present:

Name	Instrument	Explanation
rpc.server.duration	histogram	Measures duration of inbound RPC requests in milliseconds
rpc.server.active_connections	counter	The number of active WebSocket connections
rpc.server.response.size	histogram	Measures the size of HTTP response messages
http.server.duration	histogram	The HTTP server duration in milliseconds
http.server.active_requests	counter	The number of active HTTP requests
http.server.request.size	histogram	Measures the size of HTTP request messages
http.server.response.size	histogram	Measures the size of HTTP response messages

The metrics are shown here in the form required by the OpenTelemetry Metrics Semantic Conventions with a . separator. When ingested into Prometheus the . separator will be replaced with an _. For example rpc.server.active.connections will be transformed into rpc_server_active_connections.

Tokio console

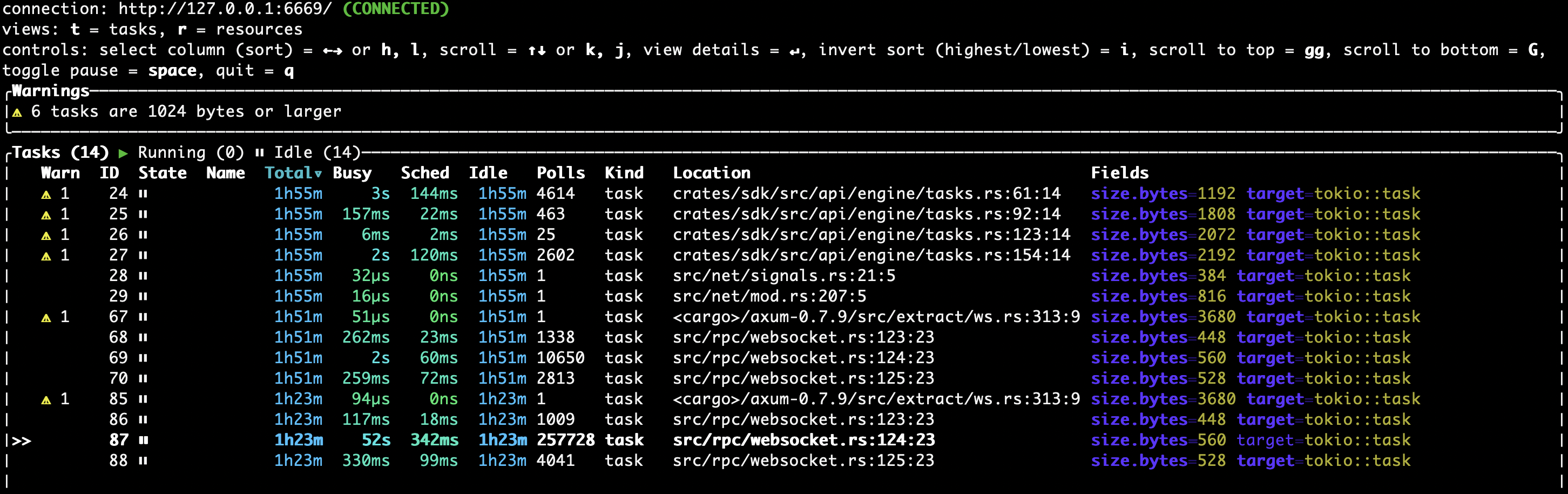

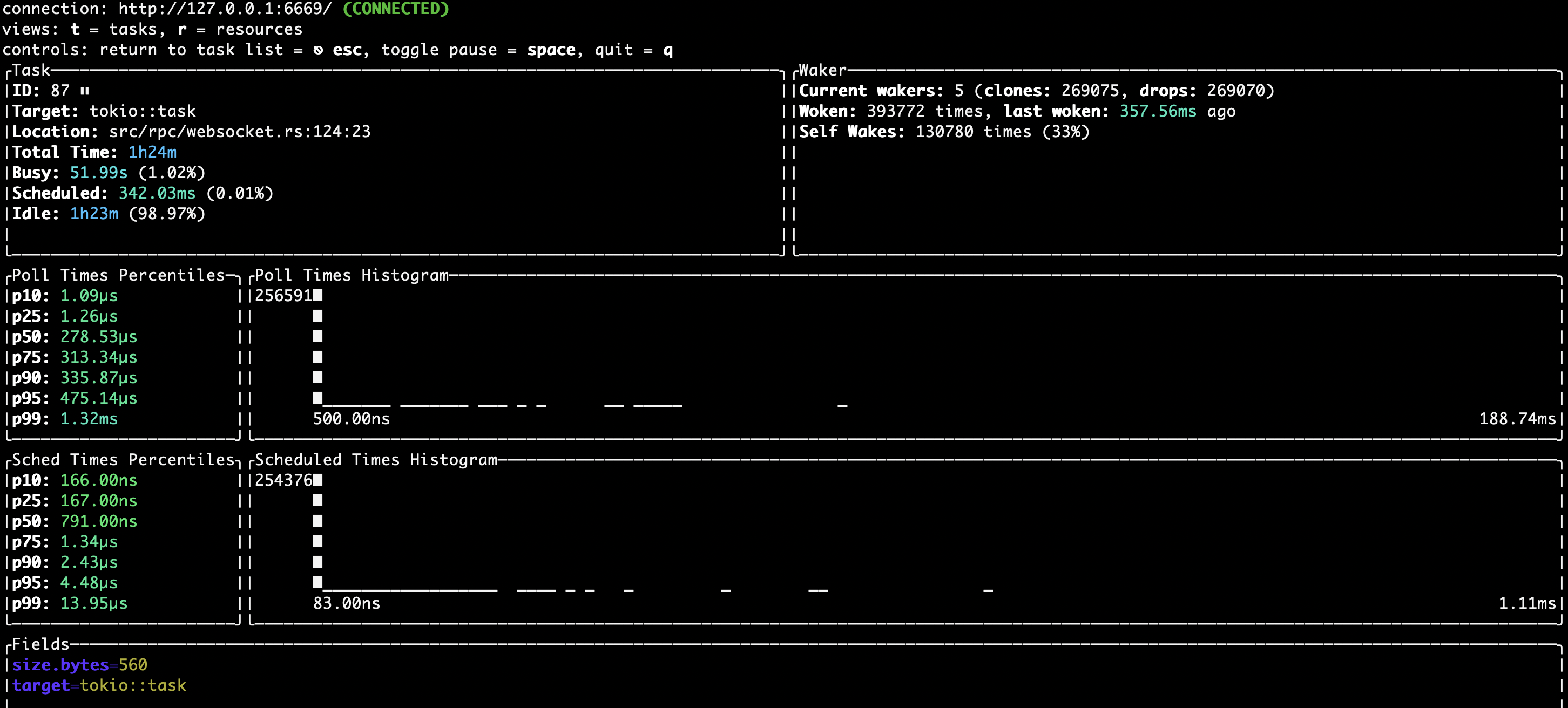

The tokio console tool can also be used to observe the low-level async tasks for the database.

To use it, install the Cargo package manager for Rust, use the command cargo install --locked tokio-console to install tokio console, and then tokio-console to run it.

The following environment variables are used to manage the console:

SURREAL_TOKIO_CONSOLE_ENABLED set to true to enable the console
SURREAL_TOKIO_CONSOLE_SOCKET_ADDR to override the default address at 127.0.0.1:6669
SURREAL_TOKIO_CONSOLE_RETENTION to override the default 6s (six seconds) value for length of time to retain data for completed events.

Log output settings

SurrealDB contains a large number of flags for the surreal start command and environment variables to modify the output from the database server. A quick overview of some of these flags is as follows:

Use --log to set the logging level (info, warn, trace, etc.).
Use --log-format to set the format (text or json).
Use --log-socket to send logs to a certain host:port.
Use --log-file-enabled to output logs to a file, followed by --log-file-path to specify the path to save logs to to.
Use --log-file-rotation to specify whether to create a new file for logs at a certain interval (daily, hourly, or never).
Use --slow-log-threshold to specify a duration after which a query will be logged as a slow query.
Use --slow-log-param-allow and --slow-log-param-deny to indicate which parameters are to be calculated before logging. For example, if $table_name has the value "person", allowing table_name will change SELECT * FROM $table_name to SELECT * FROM person in the logs.
